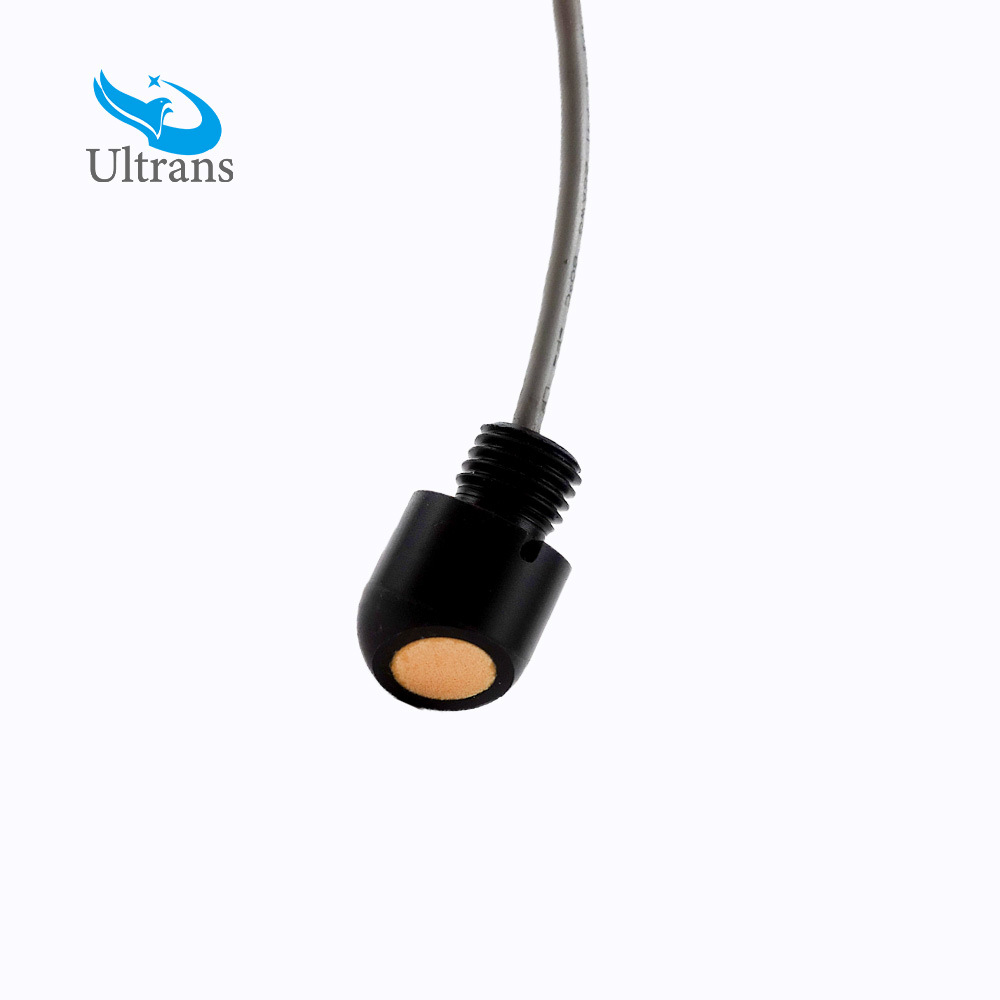

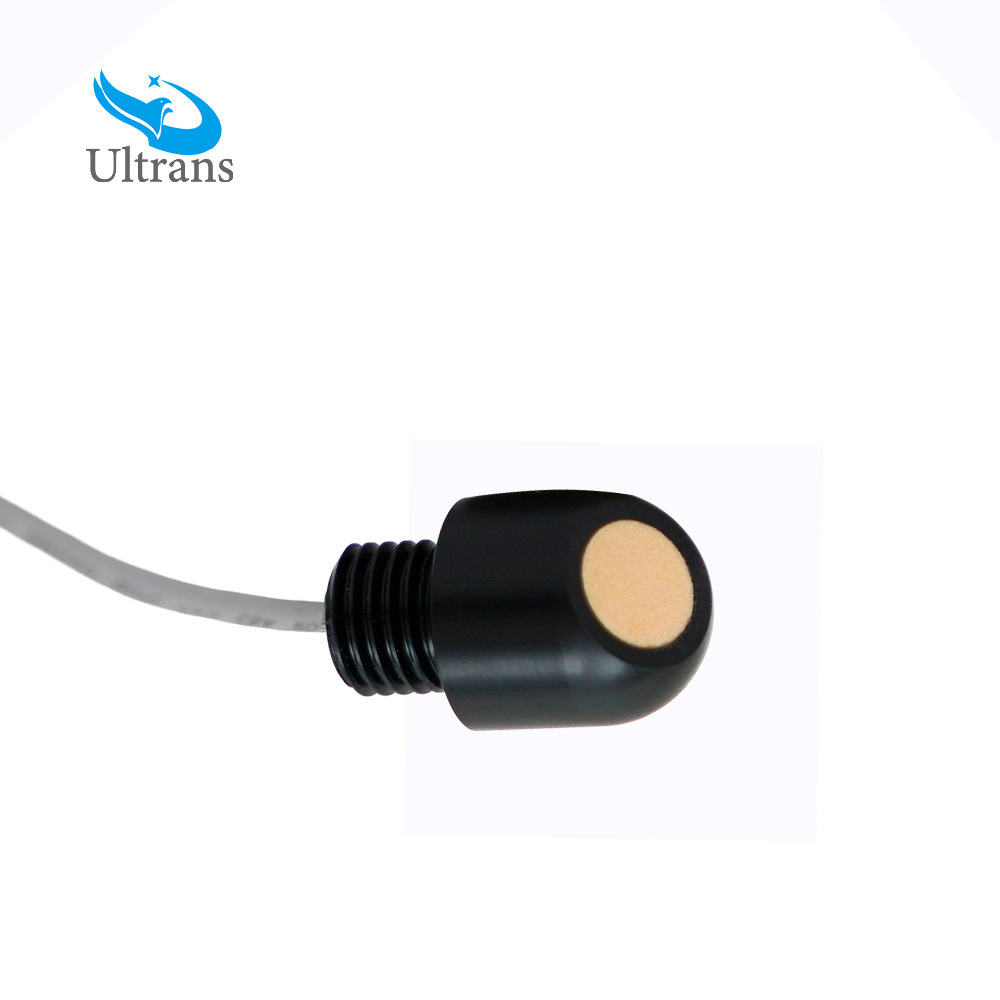

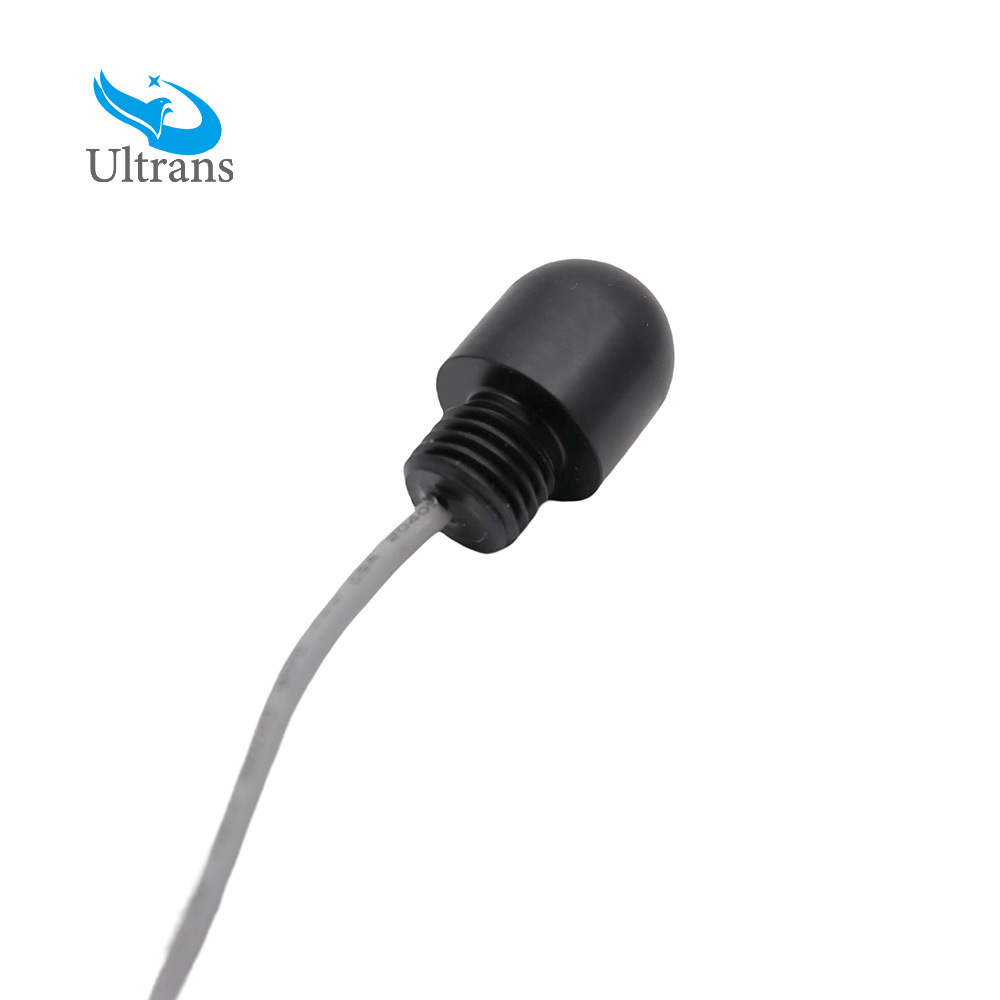

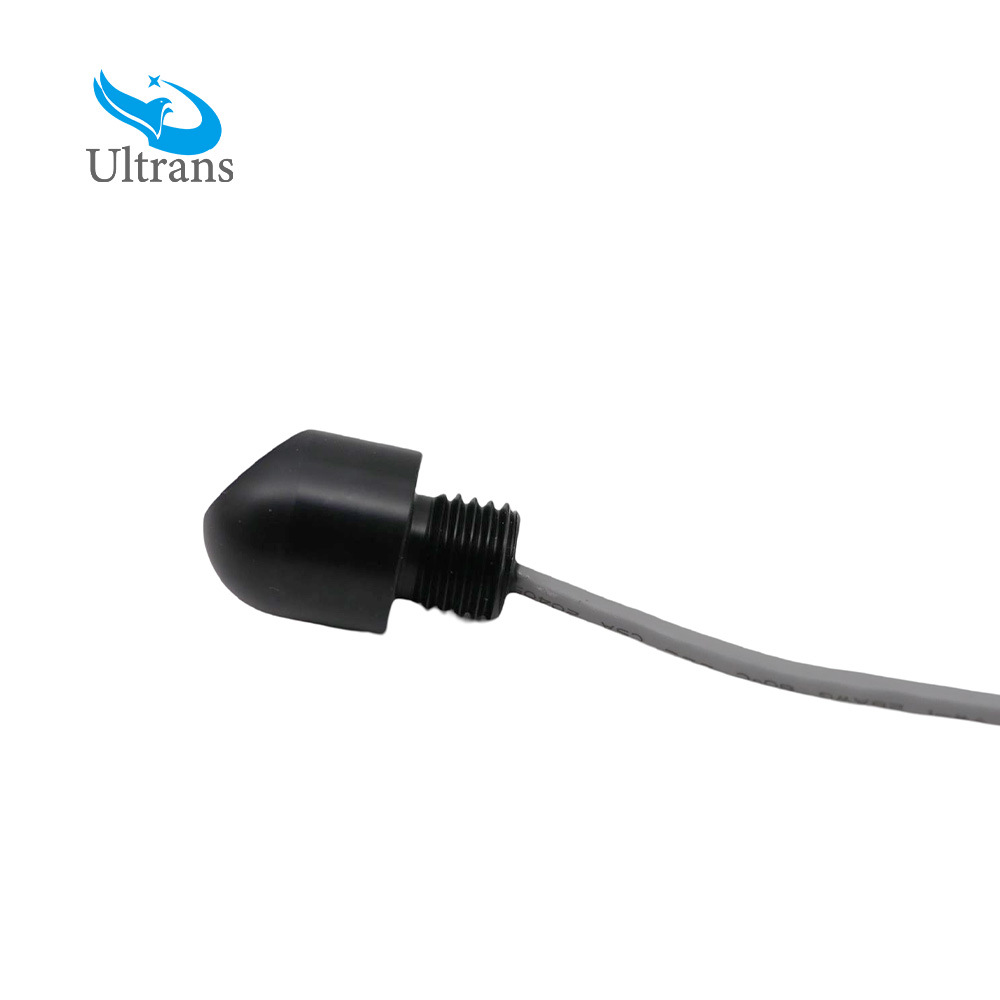

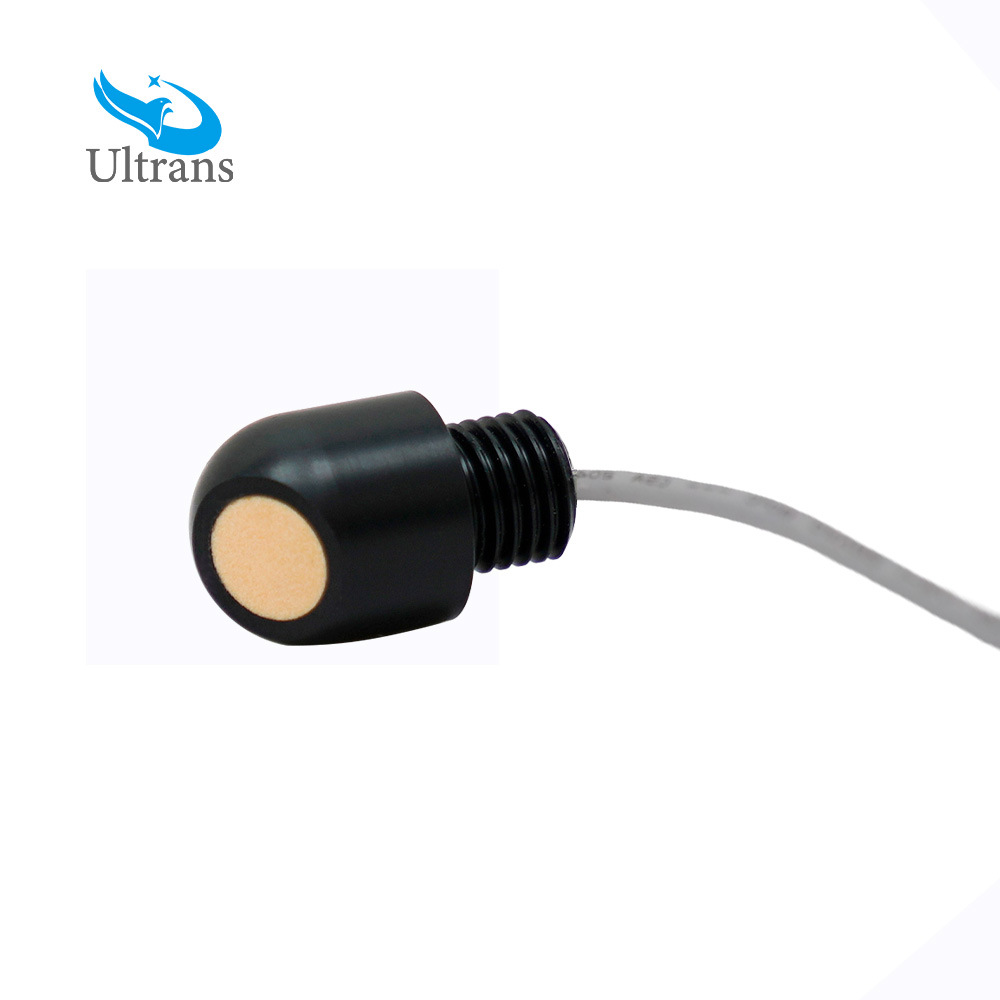

Large range Ultrasonic Sensor
Frequency
Injection
High
Surface Wave Probe
Gas
| Quantity: | |
|---|---|
| Center Frequency | 200 kHz, ±5% |
| Minimum and Maximum Sensing Range* | 0.10 to 1.5m |
| Minimum Parallel Resistance | 2300 Ω, ±20% |
| Capacitance | 370 pF,±20% pF @1 kHz |
| Echo Sensitivity (FOM) | @Driving Voltage : 200Vpp, Distance: 0.3m, Echo Amplitude: 6mV |
| Maximum Driving Voltage (2% Duty Cycle Tone Burst) | 450Vpp |
| Operating Temperature | -40°C to 80°C |
| Pressure | ≤ 3 kgf/cm2 or 0.3 MPa |
| Beamwidth (@ -3 dB Half-Power Angle) | 11.8°±10%, (@ -20 dB Acute Angle): 27.9°±10% |
| Housing Material | POM |
| Protection Level | IP68 |
| Weight | 10g±5% |
| Wiring Instruction: Integrated Type Connector: As Follows: | (3PIN, Terminal Red +, White-, Black: Shielded Wire) |
FAQ
Q: Are you manufacturer or trading company?
A: We are professional ultrasonic transducer/ultrasonic sensor/ultrasonic level meter manufacturer since 2008.
Q: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
